ZHF 80AT3

上一篇：ZHF 78AT3  下一篇：ZHF 82AT0
Type: Noveon® ZHF 80AT3 NAT 022 is an 80A non halogen, flame retardant, aromatic Polyetherbased

thermoplastic polyurethane TPU.

Appearance: Transparent spherical pellets

Features: Zero Halogen

Uses: Wire and Cable


Physical Properties

Test Method

Unit

Value*

Hardness

ASTM D-2240

80

Shore A

Specific Gravity

ASTM D-792

1.12



Tensile Strength

ASTM D-412

6670

psi

Ultimate Elongation

ASTM D-412

600

%

Tensile Set

ASTM D-412

20

%

Compression Set

ASTM D-395

20



Tg (°F by DSC)



-36



Vicat (°F)

ASTM D-1525

194



Taber (H-18, 1000g)

ASTM D-3389

.012



Flame Rating

UL-94

V-2 (75 mil)



LOI

%

25



• Extruded Strips: 1mm thickness

• Please be aware that listed values are “typical (average) values” and should / can not be applied for specification purposes.

Materials Preparation

Prior to processing, Noveon® ZHF 80AT3 TPU must be dried at 100°C during 3 hours. It is recommended to dry the material in a dehumidifying type dryer. Target dew points to be below -30°C, preferably -40°C.

Depending on the applied processing technique, following maximum moisture levels are recommended.

• Cable Extrusion………………………………………………………………….<0.05%



Processing Conditions

Noveon® ZHF 80AT3 TPU is extruded on any conventional extruder equipped with a PVC, 3 stage or barrier type screw having an L/D ratio of 25:1 and a compression ratio of 3:1.

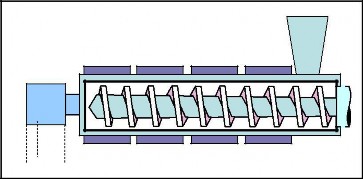

Recommended extrusion temperature profile:







oC

Hopper

Yes

Zone 1

185

Zone 2

185

Zone 3

190

Zone 4

185

Adapter (5)

185

Die (6)

180

Dip tip(7)

180
